INTRODUCTION

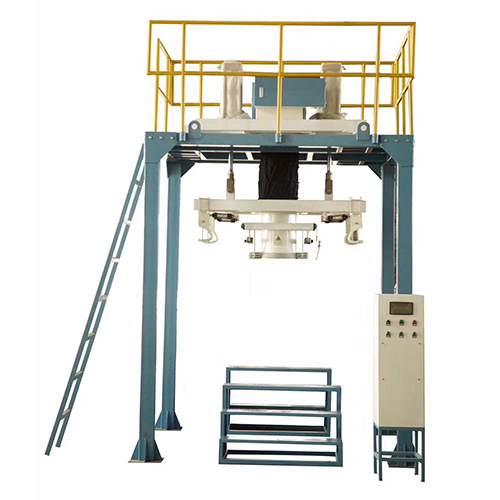

Shindery ton bag packing machine main used to pack wood pellet into jumbo bag.
Putting bag manually, after a given signal, bag holder can be done automatically, automatic lifting, automatic metering, automatic stopping, bulk bags, next round.
FEATURES
The overall structure: space saving, flexible installation;
2. Adjustable speed: the feeding mode is three-speed gravity feeding, controlled by the PLC system, and the feeding speed is adjustable;
3. Environmental protection operation: closed internal circulation system to effectively prevent dust from flying and improve working environment;
4. Reasonable structure: compact structure, small size, can be made fixed or mobile according to requirements.
SPECIFICATIONS
Model |
DCS-1000 |
Application Material |
Pellet materials |
Feed Type |
three speed gravity feed |
Weighing Range |
0.5-2tons/bag |
Precision |
<4‰ |
Packing Capacity |
15-30t/ h |
Voltage |
AC380V |
Power |
3KW |
Air Source |
0.4-0.6Mpa |
