BRIEF INTRODUCTION
The tree branch crusher is suitable for gardens, orchards, forestry, highway tree maintenance, parks, golf courses and other departments. It is mainly used for crushing and pruning various branches and forks cut from trees.
FEATURES
1.Easy to operate, one-time shaping.
2.After crushing, final products can be used as mulch, garden bed, organic fertilizer, edible fungi, biomass power generation, and also can be used to produce high density degree board, particleboard, paper industry, etc.
3.The final materials can be directly sprayed into the transport vehicle, which not only reduces the transportation cost, but also saves labors, material resources, energy saving and emission reduction.

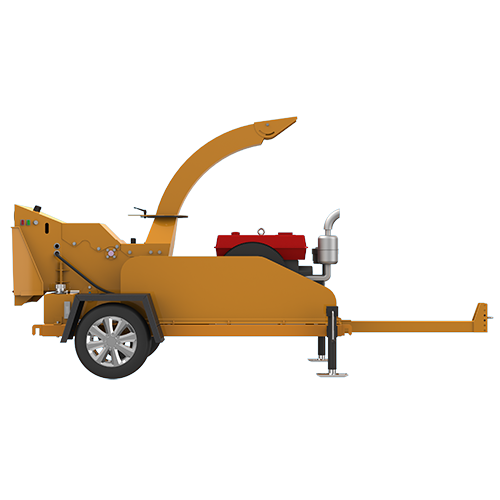

4.Shindery's special garden branch crusher can be driven by diesel engine and equipped with tires, platforms and traction devices. Move flexibly, can crush branches at any time and anywhere. It is very convenient for both field and roadside work.
Specifications Model |
S6145 |
|
Diesel engine |
Motor |
|
Power |
4108 diesel engine |
4P-55kw |
Cutter Plate Diameter(mm) |
500 |
500 |
Rotation Speed(r/min) |
2500 |
2500 |
Blade Quantity(pc) |
3pcs of moving blades 1pc of static blade |
3pcs of moving blades 1pc of static blade |
Blade Length(mm) |
450 |
450 |
Feed Roller Diameter(mm) |
500 |
500 |
Feed Roller Power Supply |
Hydraulic Motor |
Hydraulic Motor |
Inlet Dimension(mm) |
450*380 |
450*380 |
Generator Power |
600w |
- |
Battery |
24V 105Ah |
- |
Outlet Direction |
360° quick adjustment device |
360° quick adjustment device |
Other Configurations |
Tail lamp, feed lamp, foldable hand jack, adjustable traction height. |
foldable hand jack, adjustable traction height. |
Trailer wood chipper
