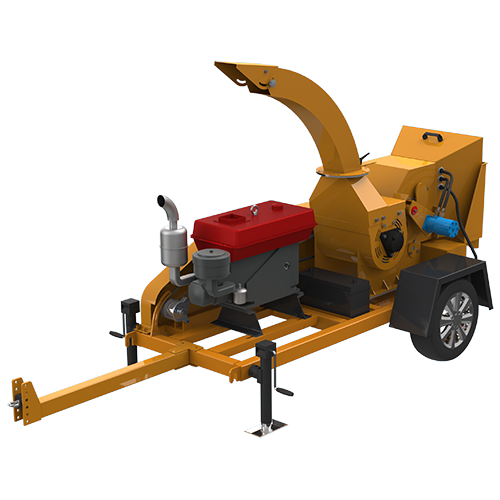

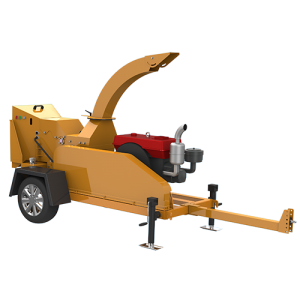

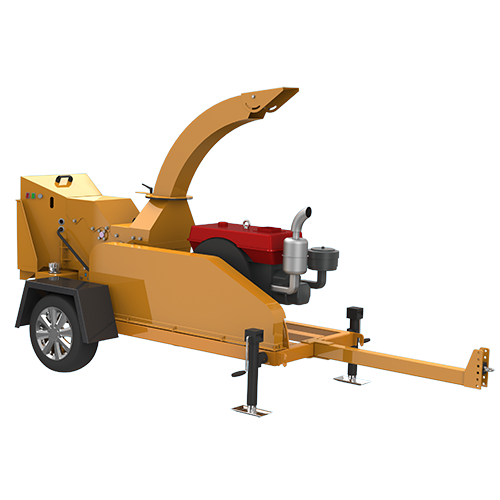

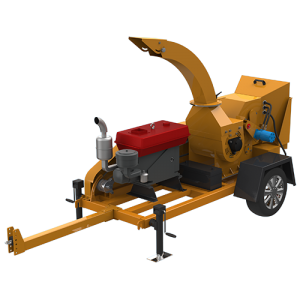

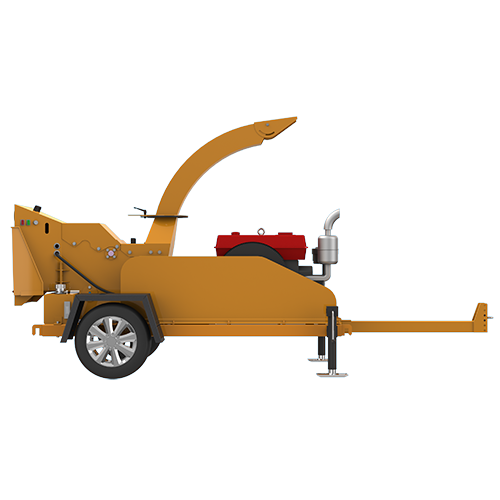

S6130 Trailer Wood Chipper

Short Description:

The tree branch crusher is suitable for gardens, orchards, forestry, highway tree maintenance, parks, golf courses and other departments. It is mainly used for crushing and pruning various branches and forks cut from trees.


Product Detail

Product Tags

BRIEF INTRODUCTION
The tree branch crusher is suitable for gardens, orchards, forestry, highway tree maintenance, parks, golf courses and other departments. It is mainly used for crushing and pruning various branches and forks cut from trees.

FEATURES
1.Easy to operate, one-time shaping.
2.After crushing, final products can be used as mulch, garden bed, organic fertilizer, edible fungi, biomass power generation, and also can be used to produce high density degree board, particleboard, paper industry, etc.
3.The final materials can be directly sprayed into the transport vehicle, which not only reduces the transportation cost, but also saves labors, material resources, energy saving and emission reduction.
4.Shindery's special garden branch crusher can be driven by diesel engine and equipped with tires, platforms and traction devices. Move flexibly, can crush branches at any time and anywhere. It is very convenient for both field and roadside work.

Specifications

Model

S6130

Diesel engine

Motor

Power

25HP

4P-22kw

Cutter Plate Diameter(mm)

300

300

Rotation Speed(r/min)

2600

2900

Blade Quantity(pc)

3pcs of moving blades 1pc of static blade

3pcs of moving blades

1pc of static blade

Blade Length(mm)

300

300

Feed Roller Diameter(mm)

280

280

Feed Roller Power Supply

Hydraulic Motor

Hydraulic Motor

Inlet Dimension(mm)

300*200

300*200

Generator Power

600w

-

Battery

12V 105Ah

-

Outlet Direction

360° quick adjustment device

360° quick adjustment device

Other Configurations

Tail lamp, feed lamp, foldable hand jack, adjustable traction height.

 foldable hand jack, adjustable traction height.

4704bcbb

Trailer mounted tree branch crusher wood chipper
