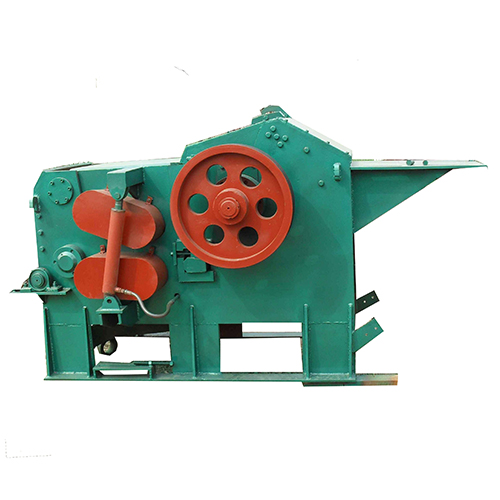

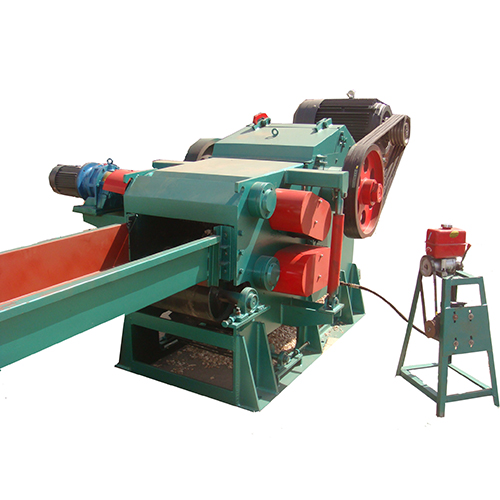

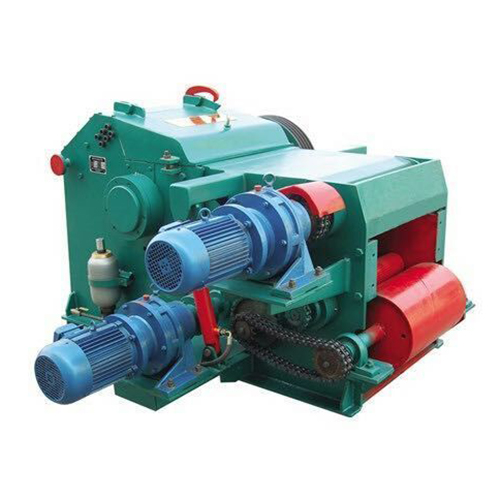

Drum Wood Chipper
Shindery drum wood chipper main used to make wood chips, raw materials can be round wood, square blocks, wood staff etc.
| Model/Item |
BX215 |
BX216-3 |
BX218-6 |
|
Feeding Conveyor(length, m) |
6 |
6 |
8 |
|
Discharging Conveyor(length, m) |
13.6 |
13.6 |
13.6 |
|
Inlet Dimension(mm) |
160*400 |
230*500 |
300*680 |
|
Blades Qty(pcs) |
2 |
3 |
6 |
|
Knife Roll Diameter(mm) |
500 |
600 |
800 |
|
Knife Roll Speed(rpm) |
592 |
590 |
650 |
|
Max. Chipping Diameter(mm) |
160 |
230 |
300 |
|
Size of Finish Chips (length*width*thickness, mm) |
20/25*20/25*5 |
20/25*20/25*5 |
20/25*20/25*5 |
|
Capacity(based on upper final size, t/h) |
3-5 |
5-8 |
10-12 |
|
Main Motor Power(kw) |
45 |
55 |
110 max |
|
Feeding Motor Power(kw) |
2.2 - 3 |
3 - 4 |
4 - 5 |
|
Discharging Motor Power(kw) |
3 |
3 |
3 |
|
Oil Pump Motor Power(kw) |
1.5*1 |
1.5*1 |
1.5*1 |
|
Machine Weight(kg) |
2990 |
4070 |
7000 |
|
External Dimension(mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
Raw wood chipper machine,drum wood chipper machine
